Taxanaha PS-Doorashada Sare

Sharaxaad Gaaban:

Darawalka la hagaajiyay ayaa sii horumariyay xawaaraha calaamadaynta
taasoo si qoto dheer u wanaajisay xawaaraha calaamadaynta daqsiga.
Naqshad qaabdhismeed isku dhafan, xasilloonida kulaylka sare, boodhka sarreeya,
darajada biyuhu.

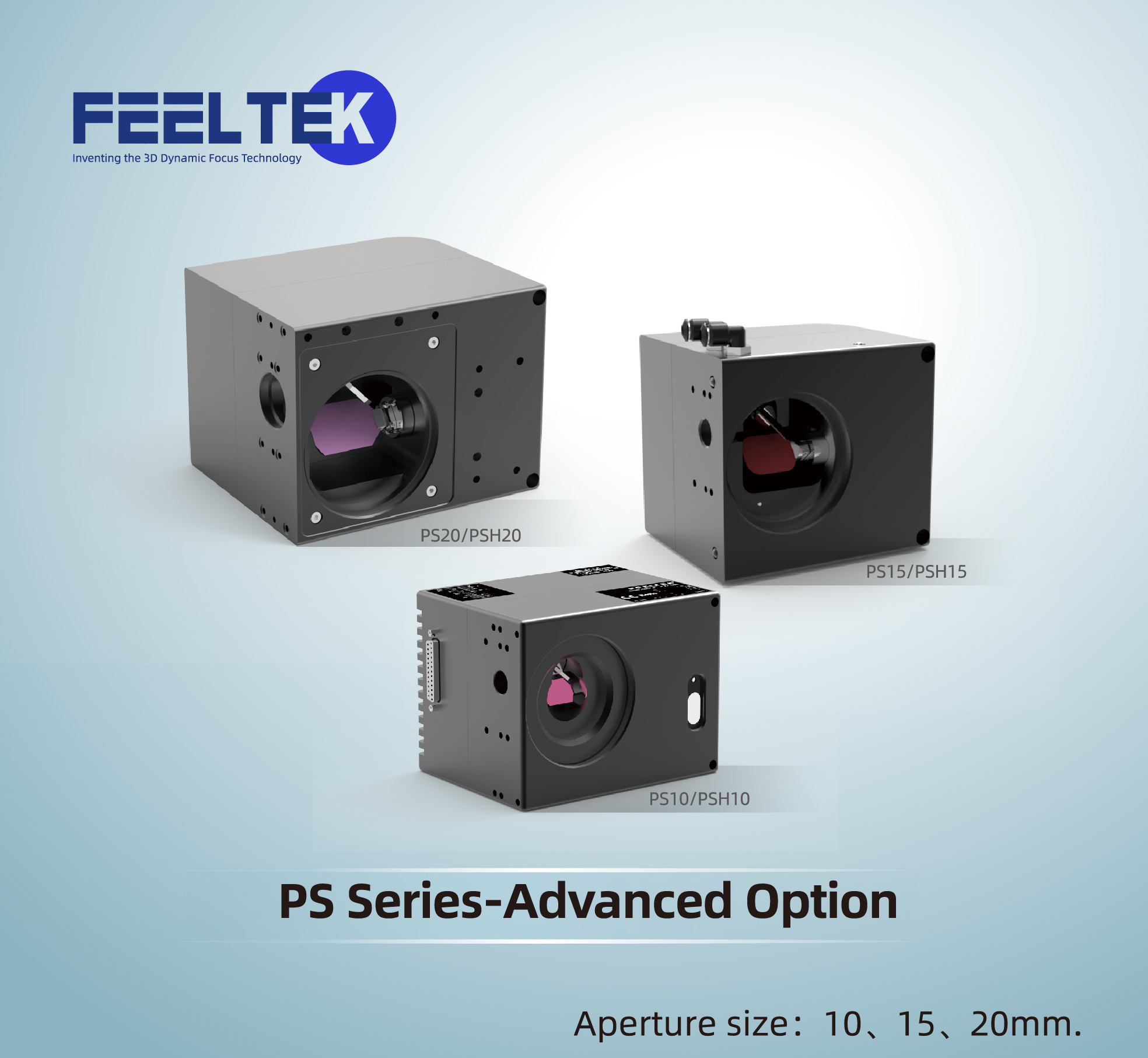

Cabbirka Aperture: 10, 15, 20mm.

Email noogu soo dir

Faahfaahinta Alaabta

Tags Product

Muuqaalka Codsiga

Macluumaadka Farsamada Alaabta

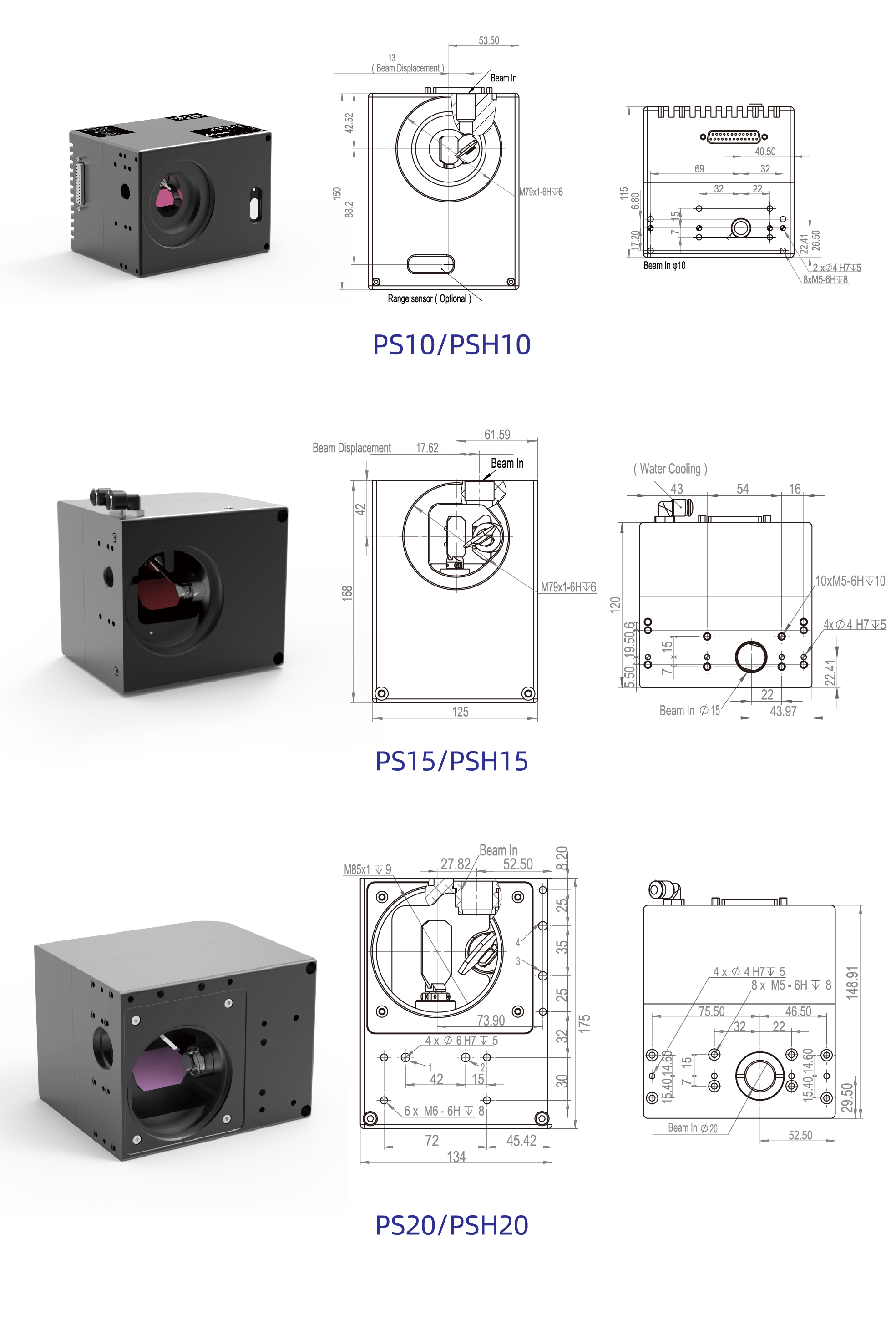

Khadka alaabta

Nooca	nooca	Miisaanka (KG)	Cabbirka (mm)	Voltage Input (VDC)	Hadda (A)	Baratakoolka
PS10 PSH10	Nooca caadiga ah Nooca Pro	2.2	150x115x115	±15	5	XY2-100 Protocol
PS15 PSH15	Nooca caadiga ah Nooca Pro	3.6	168x125x120
PS20 PSH20	Nooca caadiga ah Nooca Pro	5.5	175x134x148.9

Tilmaamaha indhaha

Nooca	Cabbirka daloolka (mm)	Mawjada dheer ee la heli karo	Qalabka indhaha	Dusha indhaha
PS10 PSH10	10	355 532 980/1064 9400 / 10640	1/4λ@633 Qayb 1/8λ@633	Si / Qu
PS15 PSH15	15	355 532 980/1064 10640	1/4λ@633	Si/SiC / Qu
PS20 PSH20	20	355 532 980/1064 9400 / 10640	1/4λ@633	Si/SiC / Qu

Tilmaamaha Galvanometer

Nooca	PS10 (Nooca caadiga ah)	PSH10 (Nooca caadiga ah)	PS15 (Nooca caadiga ah)	PSH15 (Nooca caadiga ah)	PS20 (Nooca caadiga ah)	PSH20 (Nooca caadiga ah)
Xagasha iskaan (°)	±11		±10		±10
Ku celcelinta (urad)	8		8	5	8	5
Gaadhida ugu badan (ppm/k)	100		50		50
Max.Offset Drift (urad/k)	30		30		15
Socod wakhti dheer ah oo ka badan 8 saacadood (mrad)	≦0.15	≦0.1	≦0.1		≦0.1
Khaladka Raadinta (annaga)	<90		<150		<200
Waqtiga Jawaabta tillaabada 1% ee xogta buuxda'(annaga)	<230		<410		<580
Xawaaraha Calaamadaynta Caadiga ah²(m/s)	7		5		4
Xawaaraha meelaynta caadiga ah²(m/s)	20		15		14
Calaamadaynta Calaamadaha Caadiga ah³(cps)	800CPS Tayada Wanaagsan 1000CPS Qoraal Wanaagsan		600CPS Tayada Wanaagsan 700CPS Qoraal Wanaagsan	650CPS Tayada Wanaagsan 750CPS Qoraal Wanaagsan	500CPS Tayada Wanaagsan 600CPS Qoraal Wanaagsan

1) 1% jawaabta talaabo 2) 2D scanhead isticmaal F160 F-θ lens 3) F160 F-θ lens, 1mm dhererka xariijinta xariijinta, software LenMark & kaarka xakamaynta FEELTEK
